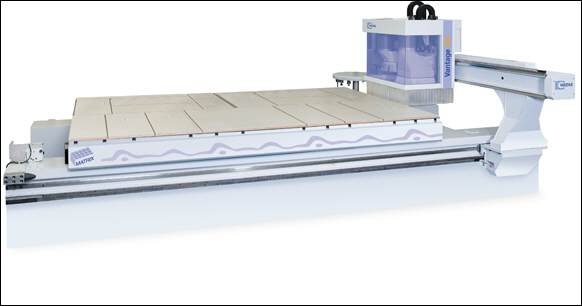

Vantage 38L

Kitchen, office furniture
Interior design manufacturing

"The top drilling equipment of it's class"

· Working field: 3700 x 2100 x 100 mm

· 25 drilling spindles vertical

· 6 drilling spindles horizontal

· 9 kW HSK router spindle

· 14 tool changing places

· 1 grooving saw 90° optional

Technical data

Working field

X - 3700 (145.7) / Y - 2100 (82.68) / Z - 100 (4.0)

mm (inch)

Travel rage

X - 4690 (184.6) / Y - 2705 (106.5) / Z1 - 325 (12.8) / Z2 - 185 (7.3)

mm (inch)

Vector speed X/Y - Z- axis

130/20

m/min

Compressed air connection

R 1/2

inch

Compressed air required

bar

Dust extraction port

Ø 200

Dust extraction vulume

min. 3170

m³/h

Electrical power - total connection load

29,5

Total machine weight

appr. 6200
