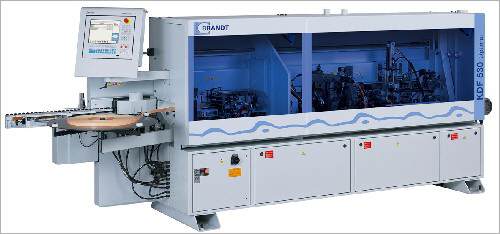

KDN 520 - KDF 570 2CU


Industry standard very compact

Industry standard very compact

Efficiency and quality linked with flexibility and high ease of operation have utmost priority.
The KDN/KDF 500 series with it's extremely compact design meets this claim in every way.



Latest technology

- DFC (Dust Flow Control) tool technology for optimum extraction
- Fully automatic lubrication of the feed track guidance system to guarantee precision and a long-life time of the conveyor chain.
- Power Control PC 20+, offering every "plus" for the customer


Technical data

Workpiece thickness (mm)

8 - 60

Edging material thickness (mm)

0,4 - 8

Coil cut-off (mm)

max. 3,0 x 45 / 0,8 x 65

Feed speed (m/min)

11 (optional 14)

Working height (mm)

950

Electrics

400 V - 3 Ph - 50 Hz

Pneumatics (bar)

6
